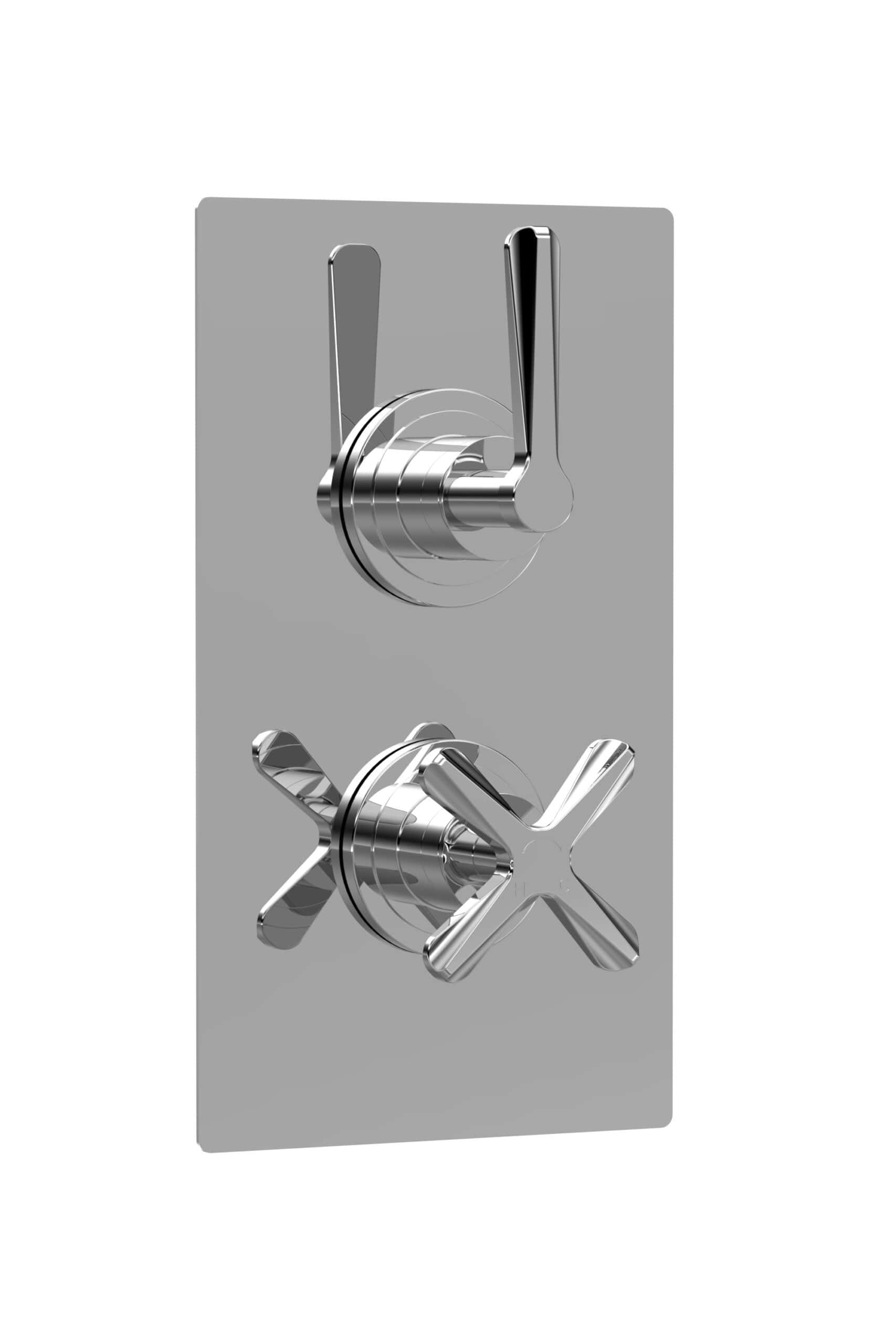

Nuie Aztec 1 Outlet 2 Handle Thermostatic Concealed Shower Valve
Sale price
£201.95
Regular price
£419.00
- Product Type: 1 Outlet Concealed Shower Valve
- Brand: Nuie
- Collection: Aztec
- Height: 215mm
- Width: 120mm
- Depth: 138mm
- Mounting: Wall
- Material: Brass/ABS
- Style: Modern
- Handle Included: Yes
- No of Handle: 2
- Handle Type: Lever/Crosshead
- Handle Finish: Chrome
- Guarantee: 5 Years
- Minimum Pressure: 0.1 Bar
- Shower Valve Outlet: 1
- Orientation: Vertical
- Easy to install and use
- Images are shown for illustration purposes only
- Flow Rate 0.1Bar l/m: 5.5
- Flow Rate 0.2Bar 1/m: 7.1
- Flow Rate 0.5Bar l/m: 14
- Flow Rate 1Bar l/m: 20
- Flow Rate 2Bar l/m: 29
- Flow Rate 3Bar l/m: 44
- Shower Head, Handset and Outlet Elbow are not Included
- Pipe Size: 15mm
- Stain Rust Resistant: Yes
- TMV2 and TMV3 are not Approved product
- Valve/Cartridge Type: 1/4 Turn Ceramic Disc
- WRAS Approval Number: 2204707
- WRAS Approved product
- Minimalist sleek design
- Accurate flow control
- Thermostatic control to +/- 2 to 3 �C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180� and replace
